Lab-scale Coating & Printing Equipment

Core coating and test products

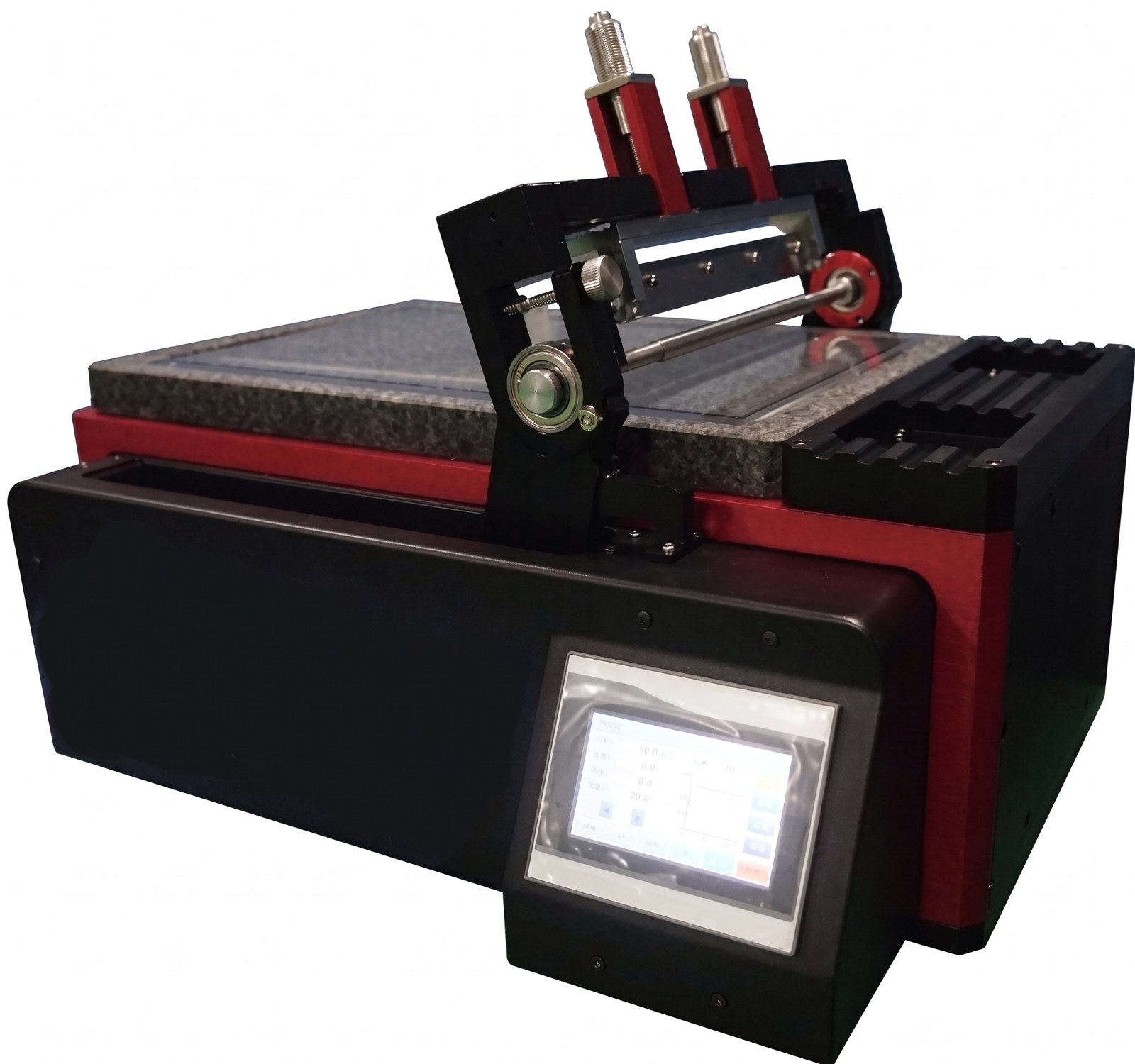

Applicator Coater

A laboratory coater operated from a touch panel. Applicators and bars can be swapped, and the coating speed can be set for each segment and stored in memory. Coating width is 150–300 mm, with a suction and heating plate and an air knife.

View specifications and downloads →

Floating Coating Panel

A coating panel that holds the specimen across two support bars to reduce the influence of an uneven underlying surface. Suitable for coating trials with films, aluminium foil and copper foil, with standard and guided versions available.

View specifications and downloads →

Applicator

An applicator with independent left and right adjustments in 5µm increments, allowing asymmetric settings. It supports coating widths of 50–300mm and heights of 0–2mm, with a dismantlable design for cleaning and component inspection.

View specifications and downloads →

Lab-scale equipment for related tasks

Plate bar coater · 200 mm

• Coating width: 200 mm

• Method / configuration: D-Bar, applicator

• Weight: approx. 60 kg

Multi-method plate coater · 300 mm

• Coating width: 300 mm

• Method / configuration: Slot-die, shearing coating, D-Bar, applicator

• Weight: approx. 400 kg

Multi-method plate coater · 200 mm

• Coating width: 200 mm

• Method / configuration: Slot-die, shearing coating, D-Bar, applicator

• Weight: approx. 60 kg

Plate stripe / float coater · 200 mm

• Coating width: 200 mm

• Method / configuration: D-Bar, applicator

• Weight: approx. 40 kg

Roll-to-roll microgravure coater · 150 mm

• Coating width: 150 mm

• Method / configuration: Microgravure

• Weight: approx. 50 kg

Multi-method roll-to-plate printer · 200 × 200 mm

• Maximum print / working area: 200 × 200 mm

• Method / configuration: Gravure, gravure offset, flexographic printing

• Weight: approx. 130 kg

Roll-to-plate reverse offset printer · 100 × 100 mm

• Maximum print / working area: 100 × 100 mm

• Method / configuration: Reverse offset, offset

• Weight: approx. 250 kg

Selecting equipment

These groups are application guides, not rated production-capacity classifications. Confirm working range, throughput, substrate and coating-liquid compatibility during consultation. Installation dimensions will be provided after their units are confirmed.

View pilot-scale equipment
