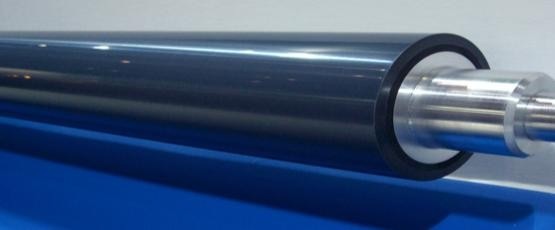

PP Composite Transport Rolls
Rollers for film and substrate transport and process quality
PP Composite Transport Rolls
Composite transport rolls using PP pipe. GHT reviews liquid and temperature compatibility for immersion and chemical-contact processes, with replaceable PP sections and regrinding options.
PROCESS ROLLERS
PP Composite Transport Rolls
Composite transport rolls using PP pipe. GHT reviews liquid and temperature compatibility for immersion and chemical-contact processes, with replaceable PP sections and regrinding options.
Features
Ground PP surface with regrinding subject to review
Composite conversion of existing rolls and PP-only replacement by agreement
CFRP combinations can be reviewed for weight reduction
Key specifications
Manufacturing / operating envelope: Max diameter φ264 mm / max overall length 5,500 mm / service temperature up to approx. 70°C
Manufacturing and supply scope
The 5,500 mm configuration may include PP-welded joints. Confirm whether maximum diameter, length and temperature can be combined for the load, liquid and shaft design. Mirror-finish requirements are agreed separately.
Product selection
Send a drawing or sample, roll diameter, face length and journals, film or substrate, tension, speed, temperature, contacting chemicals or solvents, and quantity. GHT will review material, surface treatment and feasible manufacturing scope. Results and service life depend on operating conditions.
