Benchtop Temperature & Humidity Chamber (S-TH31 / S-THSC31R1)
A 31 L benchtop chamber for temperature and humidity testing of small samples. GHT helps select a configuration suited to your test conditions and available space.
Product details

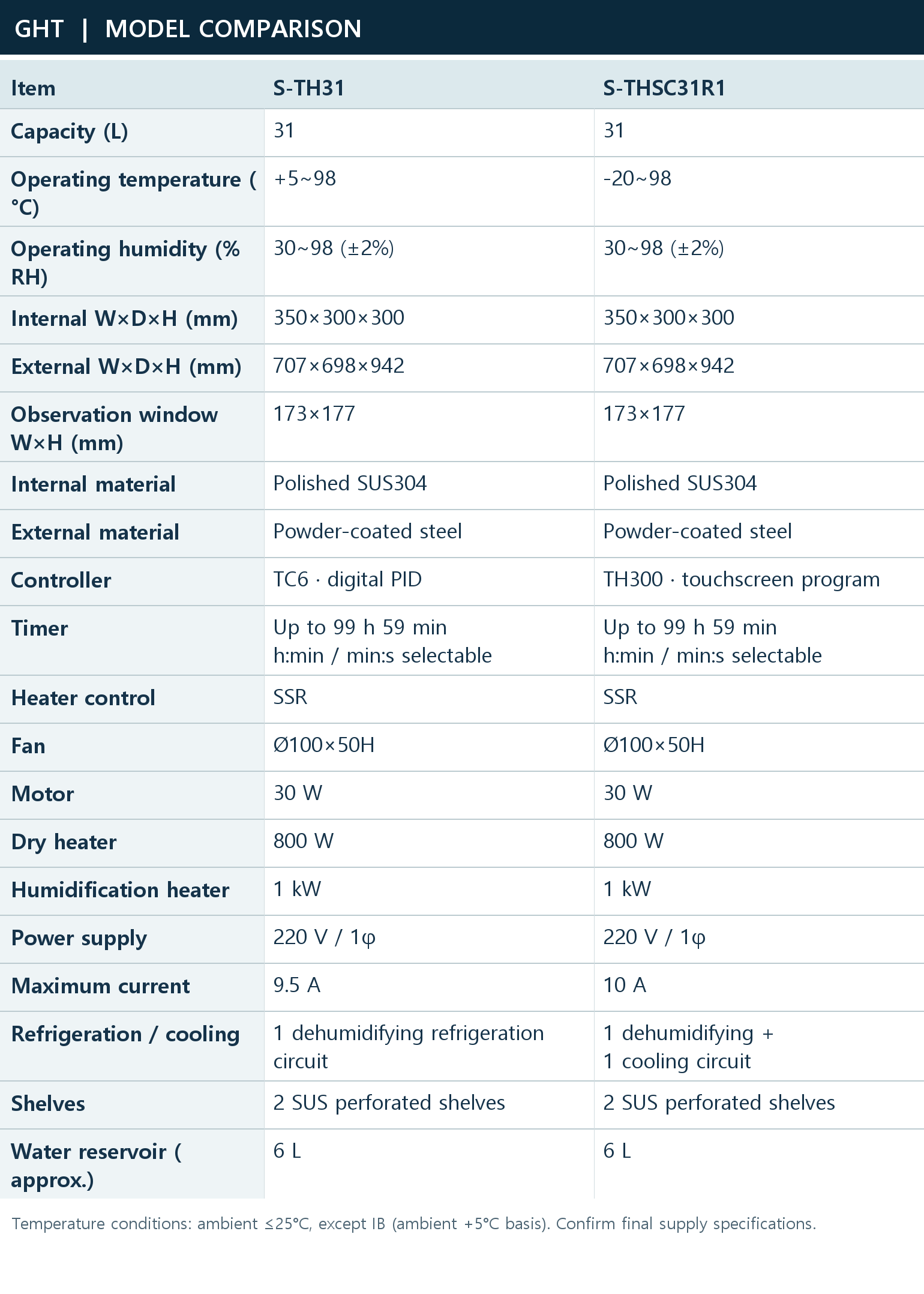

Detailed model comparison
The 31 L benchtop range includes the TC6-controlled S-TH31 and the TH300 touchscreen-programmable S-THSC31R1. Capacity is the same, but operating temperature and control method differ. Select the version for your test conditions.
Models: S-TH31 / S-THSC31R1
Achievable conditions depend on the temperature/humidity combination; the full rectangular range is not guaranteed. Do not expose electronic humidity sensors to 100°C or higher. Provide your test points and allowable tolerances so GHT can confirm the supplied specification.
Components and controls
S-TH31: TC6 temperature/humidity controllers and individual ON/OFF switches. S-THSC31R1: TH300 touchscreen controller. Both: temperature/humidity sensors, vent, observation window, low-water lamp and water-level indicator.
Options and installation
Discuss SR1000-series or GR200 recorders, cable-port size/material changes and a water-bottle stand. The TH300 programmable version is a separate model.
Options are separate from standard equipment. Model compatibility and the supplied configuration are confirmed in the quotation. Tell GHT your requirements for a suitable recommendation.
Operating manual guidance
The manuals below cover the TC6 version of S-TH31. Do not use those controller procedures for the TH300-equipped S-THSC31R1; request the applicable controller instructions from GHT.
Download Korean, English and Japanese manuals directly from Related materials below. Check the nameplate, installed controller and final supplied specification before use.
Downloads
Related downloads
- PDFGHT Benchtop Temperature/Humidity Chamber Manual [Korean]Download ↓
- PDFGHT Benchtop Temperature/Humidity Chamber Manual [English]Download ↓
- PDFGHT Benchtop Temperature and Humidity Chamber Manual [Japanese]Download ↓
