Temperature & Humidity Chamber (S-TH)

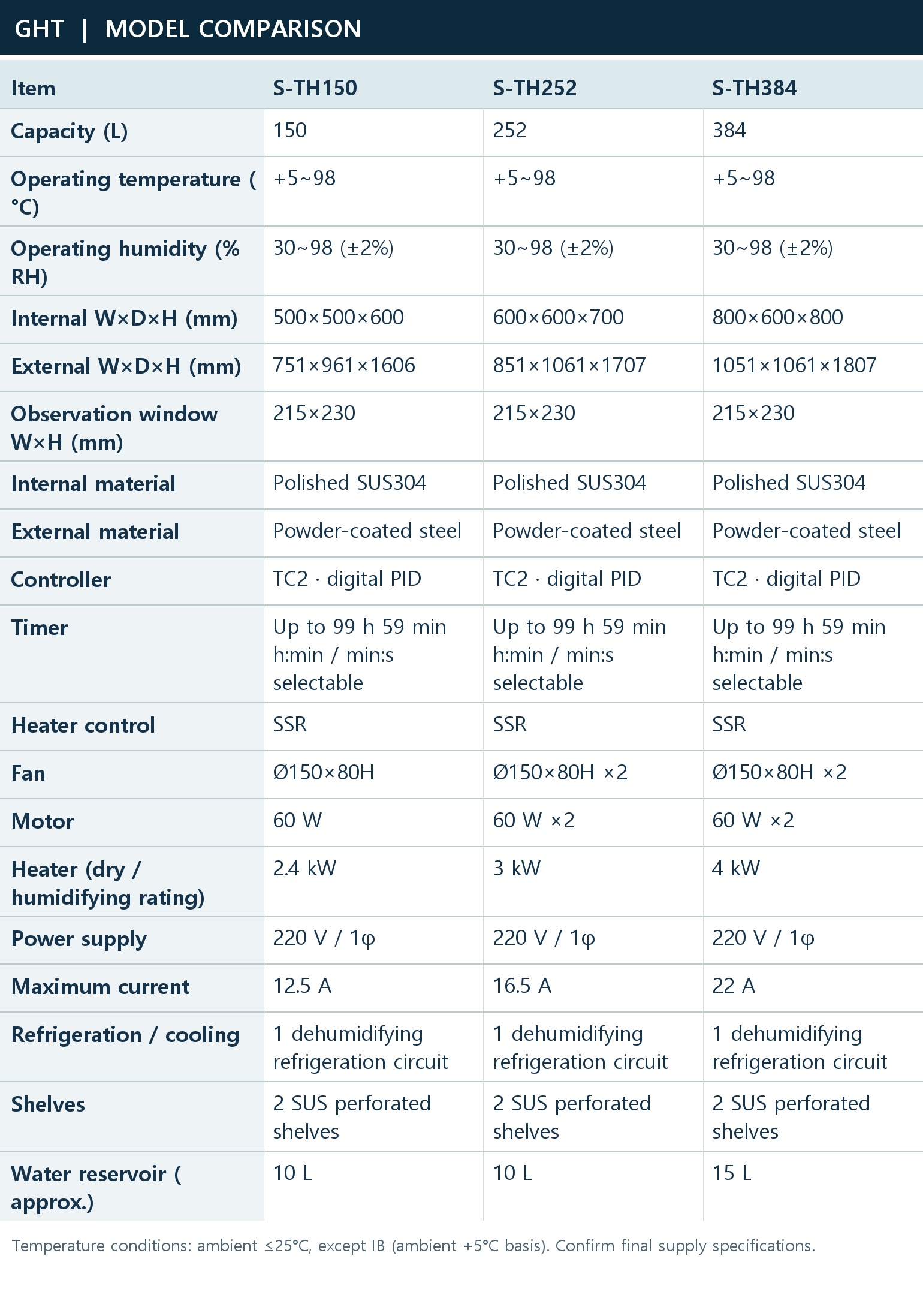

Detailed model comparison

S-TH150, S-TH252 and S-TH384 provide 150, 252 and 384 L chambers. GHT helps select capacity and test points within the stated +5 to 98°C and 30 to 98% RH operating ranges.

Models: S-TH150 / S-TH252 / S-TH384

Achievable conditions depend on the temperature/humidity combination; the full rectangular range is not guaranteed. Do not expose electronic humidity sensors to 100°C or higher. Provide your test points and allowable tolerances so GHT can confirm the supplied specification.

Heater values follow the dry/humidifying rating as listed. Individual heater ratings and total electrical demand are confirmed in the supplied electrical specification; do not double the listed value.

Components and controls

The diagram shows the TC2 temperature/humidity controllers, observation window, SUS perforated shelves and water-level indicator.

Options and installation

Options to discuss include the NEX1200 touchscreen programmable controller, SR1000-series or GR200 recorders, cable ports and a water-bottle stand.

Options are separate from standard equipment. Model compatibility and the supplied configuration are confirmed in the quotation. Tell GHT your requirements for a suitable recommendation.

Operating manual guidance

Download Korean, English and Japanese manuals directly from Related materials below. Check the nameplate, installed controller and final supplied specification before use.
