Programmable Temperature & Humidity Chamber R1 (S-THSC R1)
A touchscreen chamber for environmental tests using programmed temperature and humidity conditions. GHT helps select capacity and configuration for your test profiles and samples.
Product details

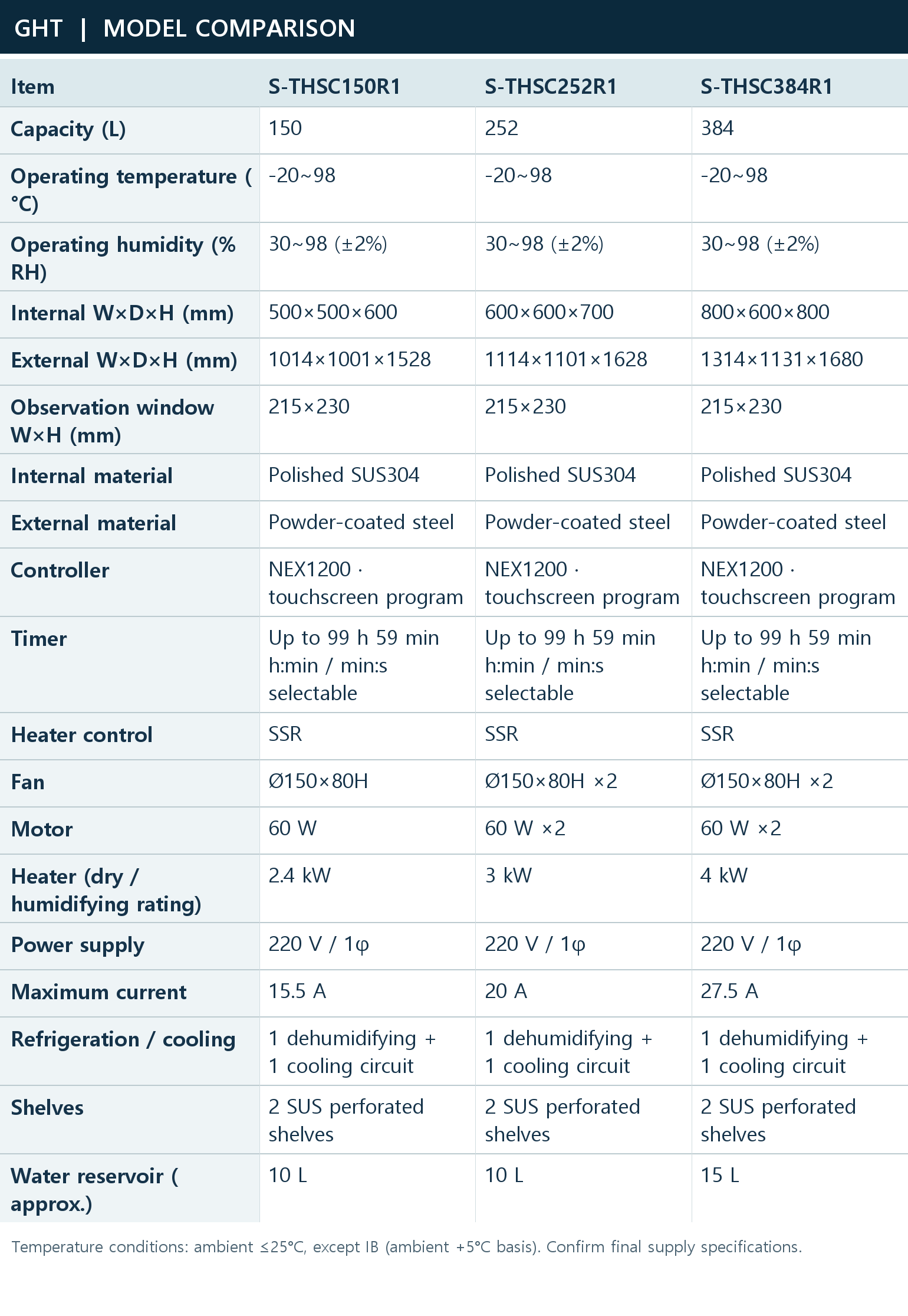

Detailed model comparison
The R1 programmable family comprises S-THSC150R1, S-THSC252R1 and S-THSC384R1. The stated -20 to 98°C range and NEX1200 touchscreen controller support programmed environmental tests.
Models: S-THSC150R1 / S-THSC252R1 / S-THSC384R1
Achievable conditions depend on the temperature/humidity combination; the full rectangular range is not guaranteed. Do not expose electronic humidity sensors to 100°C or higher. Provide your test points and allowable tolerances so GHT can confirm the supplied specification.
Heater values follow the dry/humidifying rating as listed. Individual heater ratings and total electrical demand are confirmed in the supplied electrical specification; do not double the listed value.
Components and controls
NEX1200 programmable controller, temperature/humidity sensors, observation window, perforated shelves and water-level indicator. Panel: ① low-water lamp ② door-light switch ③ power switch.
Options and installation
Discuss SR1000-series or GR200 recorders, cable-port size/material and a water-bottle stand.
Options are separate from standard equipment. Model compatibility and the supplied configuration are confirmed in the quotation. Tell GHT your requirements for a suitable recommendation.
Operating manual guidance
Download Korean, English and Japanese manuals directly from Related materials below. Check the nameplate, installed controller and final supplied specification before use.
Downloads
Related downloads
- PDFGHT R1 Temperature/Humidity Chamber Manual [Korean]Download ↓
- PDFGHT R1 Temperature/Humidity Chamber Manual [English]Download ↓
- PDFGHT R1 Temperature and Humidity Chamber Manual [Japanese]Download ↓
