Refrigerated Circulating Water Bath (S-LWB)
A refrigerated circulating bath for low-temperature experiments and temperature control of external equipment. GHT helps select a setup for your operating temperature, connected equipment and plumbing requirements.
Product details
Detailed model comparison

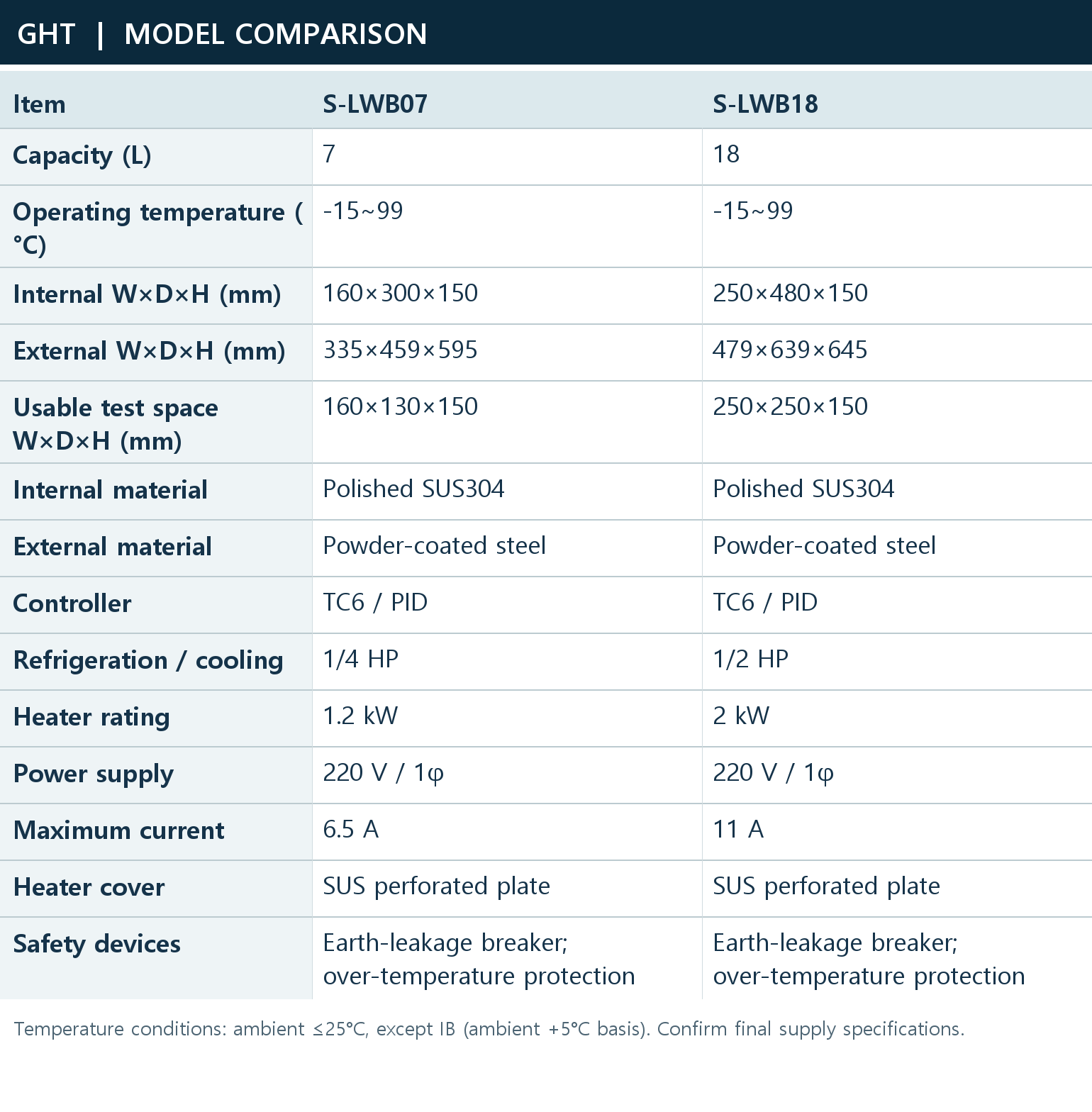

S-LWB07 and S-LWB18 are 7 and 18 L refrigerated circulating baths with TC6 control and a stated -15 to 99°C range. Compare bath volume, usable test space and refrigeration capacity when selecting a model.
Models: S-LWB07 / S-LWB18
Components and controls
The diagram shows the TC6 controller, pump switch, power switch, circulation-hose connection valves and drain valve.
Options and installation
Discuss an integrated cabinet or open-frame table. For external circulation, confirm connected heat load, flow, pump head, fluid and plumbing requirements.
Options are separate from standard equipment. Model compatibility and the supplied configuration are confirmed in the quotation. Tell GHT your requirements for a suitable recommendation.
Operating manual guidance
Download Korean, English and Japanese manuals directly from Related materials below. Check the nameplate, installed controller and final supplied specification before use.
Downloads
Related downloads
- PDFGHT Refrigerated Circulating Water Bath Manual [Korean]Download ↓
- PDFGHT Refrigerated Circulating Water Bath Manual [English]Download ↓
- PDFGHT Refrigerated Circulating Bath Manual [Japanese]Download ↓
