High-temperature Industrial Drying Oven (S-HIOV864 / S-HIOV1152 / S-HIOV2250)
A large-capacity forced-air oven for high-temperature drying, heat treatment and curing. GHT helps select capacity and operating configuration for large samples and production batches.
SPECIFICATIONS
Detailed model specifications
RT means ambient temperature. Dimensions are W×D×H. Select the additional product images above to view specifications and component drawings. Confirm the final supply specifications with GHT.
| Capacity | 864 / 1152 / 2250 L | |
|---|---|---|
| Operating temperature | Ambient +10 °C to 320 °C | |
| Maximum temperature | 350 °C | |
| Internal W×D×H | 900×800×1200 / 1200×800×1200 / 1500×1000×1500 mm | |
| Power supply | 380 V, 3-phase | |
| S-HIOV864 | Operating temperature: RT+10–320°C (RT ≤25°C) · Maximum temperature: 350°C | Operating temperature: RT+10–320°C (RT ≤25°C) · Maximum temperature: 350°C · Temperature uniformity: 200°C: ±3°C; 300°C: ±4°C · Capacity: 864 L · Internal W×D×H: 900×800×1200 mm · External W×D×H: 1460×1374×1743 mm · Heater: 12 kW · Power supply: 380V 3φ / Max 19.5A Dimensions in mm; RT = ambient temperature. Confirm the supply configuration and installation power with GHT. |
| S-HIOV1152 | Operating temperature: RT+10–320°C (RT ≤25°C) · Maximum temperature: 350°C | Operating temperature: RT+10–320°C (RT ≤25°C) · Maximum temperature: 350°C · Temperature uniformity: 200°C: ±3°C; 300°C: ±4°C · Capacity: 1152 L · Internal W×D×H: 1200×800×1200 mm · External W×D×H: 1760×1372×2090 mm · Heater: 18 kW · Power supply: 380V 3φ / Max 29.5A Dimensions in mm; RT = ambient temperature. Confirm the supply configuration and installation power with GHT. |
| S-HIOV2250 | Operating temperature: RT+10–320°C (RT ≤25°C) · Maximum temperature: 350°C | Operating temperature: RT+10–320°C (RT ≤25°C) · Maximum temperature: 350°C · Temperature uniformity: 200°C: ±3°C; 300°C: ±4°C · Capacity: 2250 L · Internal W×D×H: 1500×1000×1500 mm · External W×D×H: 2060×1605×2390 mm · Heater: 24 kW · Power supply: 380V 3φ / Max 38.5A Dimensions in mm; RT = ambient temperature. Confirm the supply configuration and installation power with GHT. |
| Construction, control and components | Common configuration specifications | Common configuration specifications Forced convection with digital PID control. Uniformity refers to the stated test temperature and depends on loading and installation conditions. |
FEATURES & OPTIONS
High-temperature Industrial Drying Oven - Specifications and product guide
Model comparison · English specification PDF · Product configuration

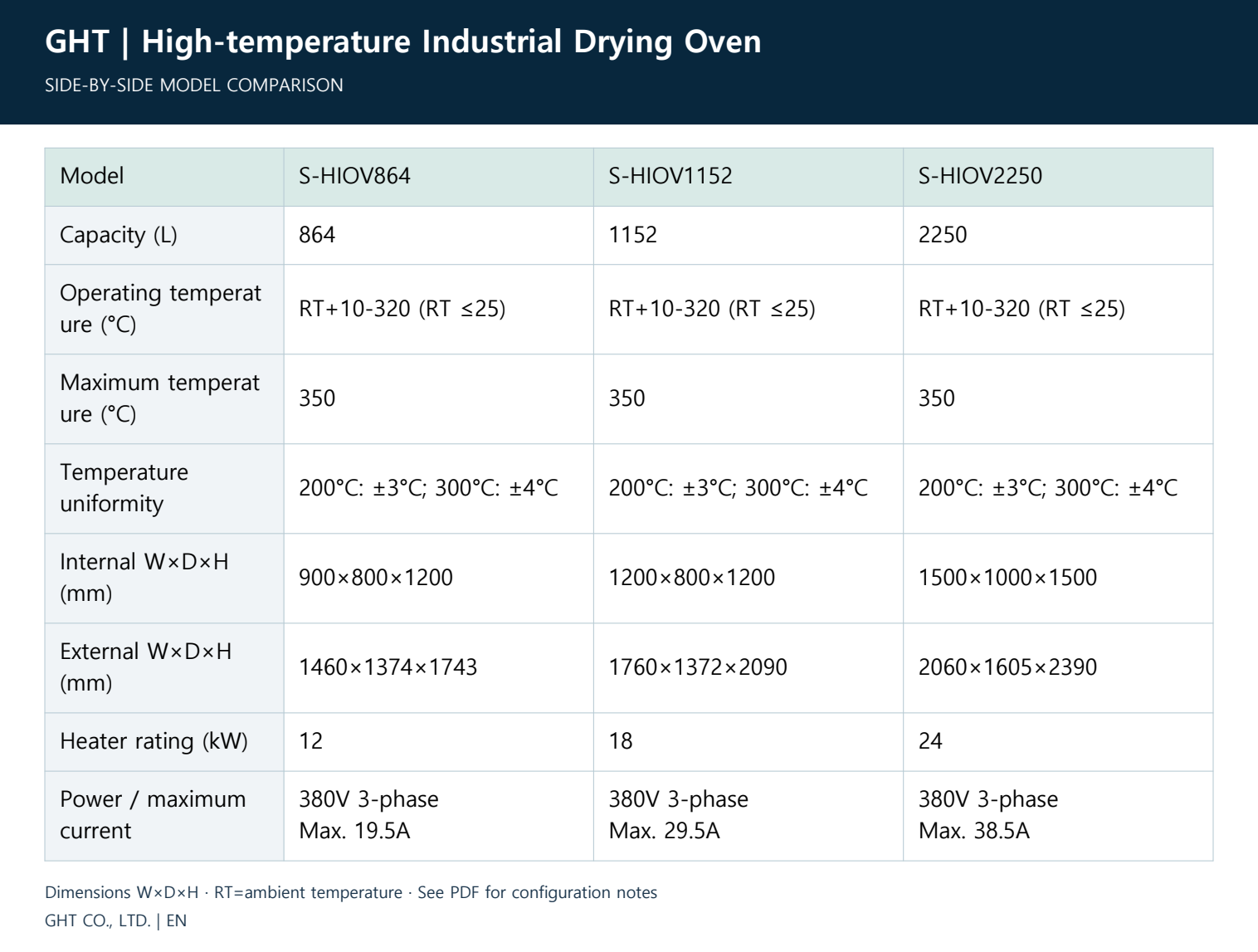

Compare model specifications
Compare capacity, temperature, dimensions and power side by side. Select the table to view it at full size.
Open the English specification PDF
High-temperature processing
This forced-air oven supports drying, heat treatment and curing of large samples and production batches. Capacities are 864L, 1152L and 2250L. The operating range is ambient temperature +10°C to 320°C; maximum temperature is 350°C.
Control, safety and chamber construction
The configuration includes PID control, auto-tuning, simultaneous set/actual temperature display and vent ports for moisture and hot air. Safety components include over-temperature protection, an earth-leakage breaker, emergency stop and a signal tower. Adjustable supports and perforated shelves assist loading; silica-glass door packing supports high-temperature sealing.
Electrical and external dimensions by model
S-HIOV864: 12kW heater; external W1460×D1374×H1743mm. S-HIOV1152: 18kW; W1760×D1372×H2090mm. S-HIOV2250: 24kW; W2060×D1605×H2390mm. Reference power supply: 380V, three-phase.
Temperature uniformity and options
The specification table lists ±3.0°C at 200°C and ±4.0°C at 300°C. Review actual loading conditions before application. Discuss TP3 or NEX1000 programme control, a GR200 recorder, internal/external trolleys, validation and calibration with GHT.
Confirm the model and operating conditions
Temperature and capacity depend on the model and configuration. Maximum temperature and continuous operating temperature are distinct; final specifications are confirmed during quotation.
Discuss your requirements with GHT
Share sample dimensions, weight and quantity, target temperature and hold time, installation space and power supply. For vacuum or gas-use equipment, we also review pump, trap and gas-supply requirements. GHT will recommend a suitable configuration and discuss supply specifications.
Original component images (reference)
Open an original image and zoom in to inspect component positions and details.
