Type A Industrial Drying Oven (S-IOV864A / S-IOV1152A / S-IOV2250A)
A forced-air drying oven with a top-mounted motor for drying, heating and curing large samples or production batches. GHT helps select capacity and shelving to suit throughput and installation space.
SPECIFICATIONS
Detailed model specifications
RT means ambient temperature. Dimensions are W×D×H. Select the additional product images above to view specifications and component drawings. Confirm the final supply specifications with GHT.
| Capacity | 864 / 1152 / 2250 L | |
|---|---|---|
| Operating temperature | 40–200 °C (RT ≤25 °C) | |
| Maximum temperature | 250 °C | |
| Internal W×D×H | 900×800×1200 / 1200×800×1200 / 1500×1000×1500 mm | |
| Power supply | 380 V, 3-phase | |
| S-IOV864A | Operating temperature: 40–200°C (RT ≤25°C) · Maximum temperature: 250°C | Operating temperature: 40–200°C (RT ≤25°C) · Maximum temperature: 250°C · Temperature uniformity: 120°C: ±2°C; 200°C: ±3°C · Capacity: 864 L · Internal W×D×H: 900×800×1200 mm · External W×D×H: 1460×992×1938 mm · Heater: 7 kW · Power supply: 380V 3φ / Max 11.5A Dimensions in mm; RT = ambient temperature. Confirm the supply configuration and installation power with GHT. |
| S-IOV1152A | Operating temperature: 40–200°C (RT ≤25°C) · Maximum temperature: 250°C | Operating temperature: 40–200°C (RT ≤25°C) · Maximum temperature: 250°C · Temperature uniformity: 120°C: ±2°C; 200°C: ±3°C · Capacity: 1152 L · Internal W×D×H: 1200×800×1200 mm · External W×D×H: 1760×992×1959 mm · Heater: 12 kW · Power supply: 380V 3φ / Max 19.5A Dimensions in mm; RT = ambient temperature. Confirm the supply configuration and installation power with GHT. |
| S-IOV2250A | Operating temperature: 40–200°C (RT ≤25°C) · Maximum temperature: 250°C | Operating temperature: 40–200°C (RT ≤25°C) · Maximum temperature: 250°C · Temperature uniformity: 120°C: ±2°C; 200°C: ±3°C · Capacity: 2250 L · Internal W×D×H: 1500×1000×1500 mm · External W×D×H: 2040×1200×2493 mm · Heater: 18 kW · Power supply: 380V 3φ / Max 29.5A Dimensions in mm; RT = ambient temperature. Confirm the supply configuration and installation power with GHT. |
| Construction, control and components | Common configuration specifications | Common configuration specifications Forced convection with digital PID control. Uniformity refers to the stated test temperature and depends on loading and installation conditions. |
FEATURES & OPTIONS
Type A Industrial Drying Oven - Specifications and product guide
Model comparison · English specification PDF · Product configuration

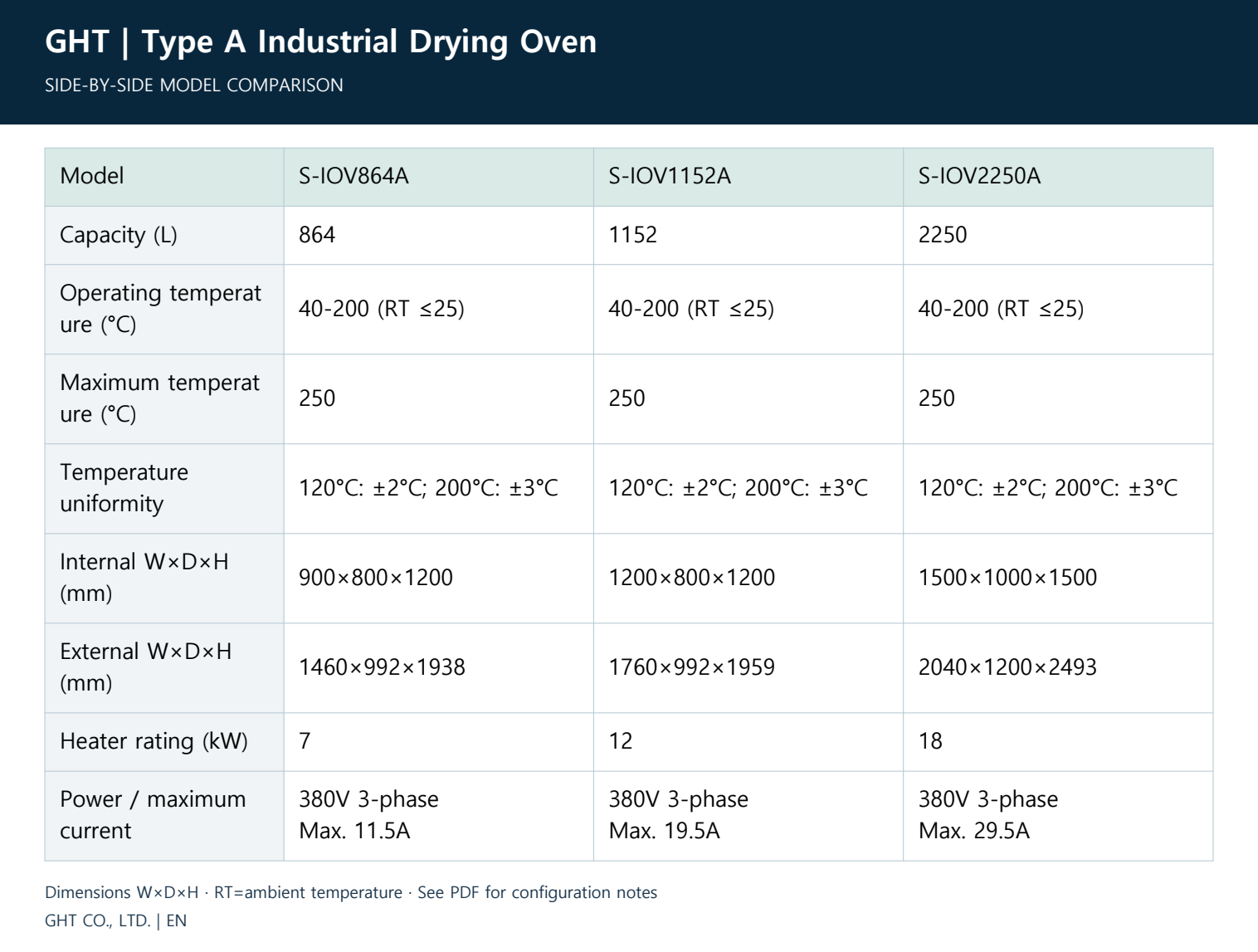

Compare model specifications
Compare capacity, temperature, dimensions and power side by side. Select the table to view it at full size.
Open the English specification PDF
Applications and heating
Forced-air circulation supports drying, heat treatment and curing of large samples and production batches. The Type A design places the motor above the chamber. Select 864L, 1152L or 2250L to suit throughput and installation space.
Control, safety and loading
PID temperature control and auto-tuning support simultaneous monitoring of set and actual temperature. Vent ports release moisture and hot air. The door limit switch interrupts operation of the motor, fan and heater when the door opens. The configuration includes over-temperature protection, emergency stop, a signal tower and adjustable shelf supports.
Electrical and external dimensions by model
S-IOV864A: 7kW heater; external W1460×D992×H1938mm. S-IOV1152A: 12kW; W1760×D992×H1959mm. S-IOV2250A: 18kW; W2040×D1200×H2493mm. Reference power supply: 380V, three-phase.
Temperature uniformity and options
The specification table lists uniformity of ±2.0°C at 120°C and ±3.0°C at 200°C. Actual loading and operating conditions must also be reviewed. Discuss optional TP3 or NEX1000 programme controllers, a GR200 recorder, internal/external trolleys, IQ/OQ/PQ validation and calibration with GHT.
Confirm the model and operating conditions
Temperature and capacity depend on the model and configuration. Maximum temperature and continuous operating temperature are distinct; final specifications are confirmed during quotation.
Discuss your requirements with GHT
Share sample dimensions, weight and quantity, target temperature and hold time, installation space and power supply. For vacuum or gas-use equipment, we also review pump, trap and gas-supply requirements. GHT will recommend a suitable configuration and discuss supply specifications.
Original component images (reference)
Open an original image and zoom in to inspect component positions and details.
