Nitrogen-purge Vacuum Drying Oven (S-VAC27-N / HVAC27-N / S-VAC27AP-N)
A nitrogen-purge vacuum oven for drying samples sensitive to oxygen exposure. GHT discusses heating method, vacuum pump and gas supply configuration based on sample characteristics and operating temperature.
SPECIFICATIONS
Detailed model specifications
RT means ambient temperature. Dimensions are W×D×H. Select the additional product images above to view specifications and component drawings. Confirm the final supply specifications with GHT.
| Reference capacity | 27 L | |
|---|---|---|
| Operating temperature | 40–200 °C / 40–300 °C (model dependent) | |
| Internal W×D×H | 300×300×300 mm | |
| Power supply | 220 V, single-phase | |
| Selection requirements | Heating method / vacuum pump / nitrogen supply | |
| S-VAC27-N | Capacity: 27 L · Internal W×D×H: 300×300×300 mm | Capacity: 27 L · Internal W×D×H: 300×300×300 mm · External W×D×H: 598×532×777 mm · Power supply: 220V 1φ Dimensions in mm; RT = ambient temperature. Confirm the supply configuration and installation power with GHT. |
| HVAC27-N | Capacity: 27 L · Internal W×D×H: 300×300×300 mm | Capacity: 27 L · Internal W×D×H: 300×300×300 mm · External W×D×H: 598×532×777 mm · Power supply: 220V 1φ Dimensions in mm; RT = ambient temperature. Confirm the supply configuration and installation power with GHT. |
| S-VAC27AP-N | Capacity: 27 L · Internal W×D×H: 300×300×300 mm | Capacity: 27 L · Internal W×D×H: 300×300×300 mm · External W×D×H: 598×532×777 mm · Power supply: 220V 1φ Dimensions in mm; RT = ambient temperature. Confirm the supply configuration and installation power with GHT. |
| Construction, control and components | Common configuration specifications | Common configuration specifications Acid-finished SUS304 interior; powder-coated steel exterior. Digital PID, contactless SSR control and timer up to 99h59min (min-sec selectable). Leakage breaker and overtemperature protection. Pump, trap and valve configuration is confirmed for the process. The 0–760mmHg vacuum-resistance notation is not a guaranteed ultimate absolute pressure. Target pressure is confirmed separately. Maximum 250/350°C and operating 40–200/40–300°C are configuration options. Confirm the model-specific temperature configuration with GHT. |
FEATURES & OPTIONS
Nitrogen-purge Vacuum Drying Oven - Specifications and product guide
Model comparison · English specification PDF · Product configuration

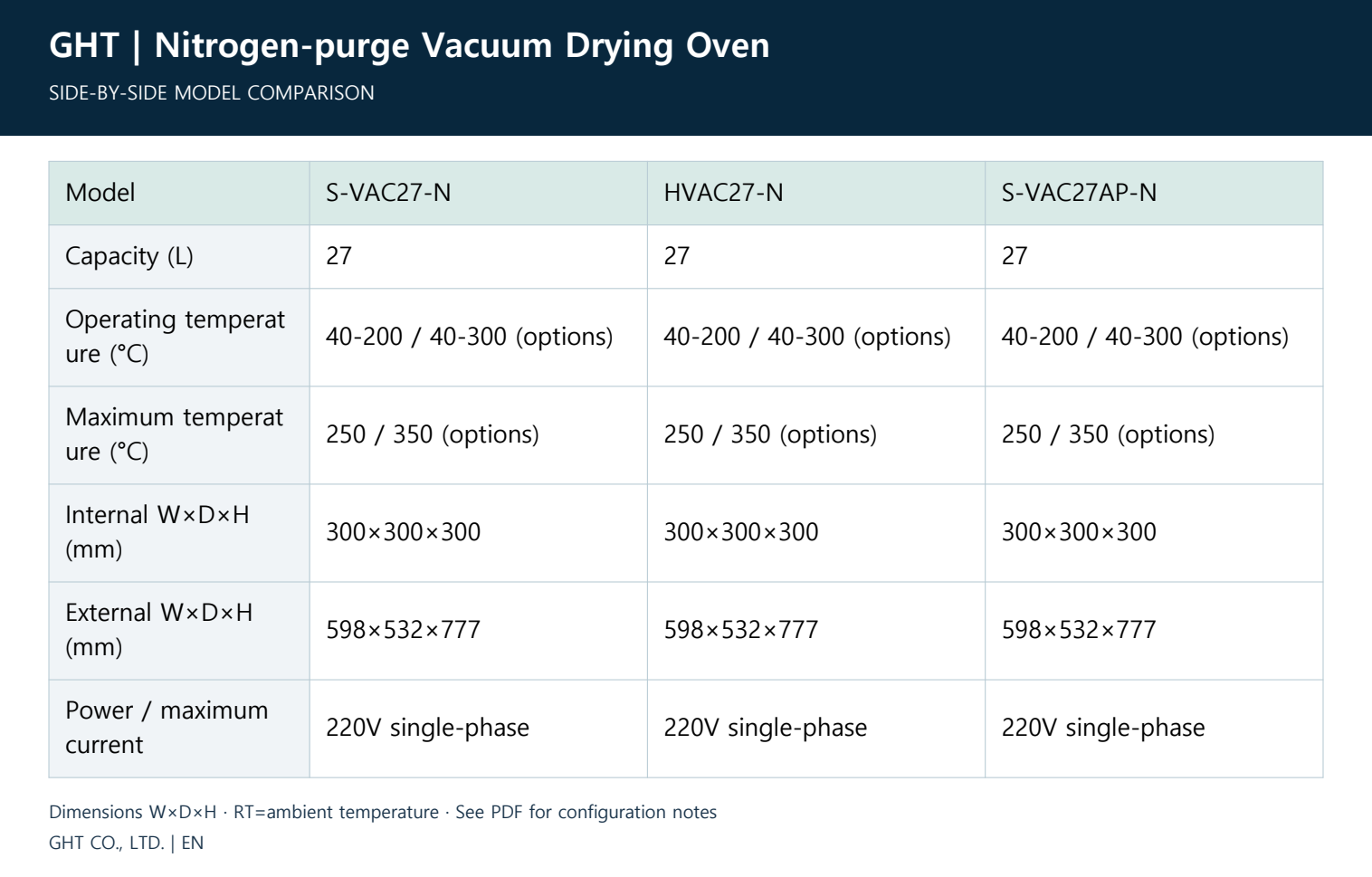

Compare model specifications
Compare capacity, temperature, dimensions and power side by side. Select the table to view it at full size.
Open the English specification PDF
Nitrogen purging and heating
Nitrogen supply reduces oxygen exposure during drying of oxidation-sensitive samples. Select indirect-heated, high-temperature or shelf-heated models to suit the sample and operating temperature. Nitrogen supply alone does not automatically establish a specified oxygen concentration or vacuum level; discuss the target conditions with GHT.
Control, vacuum and gas configuration
PID control, auto-tuning and simultaneous set/actual temperature display are supported. The illustrated configuration includes a TC6 controller, flowmeter, vacuum gauge, vacuum valves and pump connection hoses. A diffusion-prevention valve reduces sudden air entry when vacuum is released. Earth-leakage and over-temperature protection are provided.
Materials and reference dimensions
The 27L reference chamber measures W300×D300×H300mm internally and W598×D532×H777mm externally. The chamber is SUS304 and the exterior is powder-coated steel. Reference supply is 220V single-phase. Operating ranges of 40–200°C and 40–300°C are model-dependent.
Options and supply configuration
Cabinet, box or open-frame support tables, vacuum pumps and cold traps can be discussed for your application. Share the nitrogen source, target pressure/atmosphere and moisture or solvent load so GHT can confirm components and connection requirements.
Confirm the model and operating conditions
Temperature and capacity depend on the model and configuration. Maximum temperature and continuous operating temperature are distinct; final specifications are confirmed during quotation.
Discuss your requirements with GHT
Share sample dimensions, weight and quantity, target temperature and hold time, installation space and power supply. For vacuum or gas-use equipment, we also review pump, trap and gas-supply requirements. GHT will recommend a suitable configuration and discuss supply specifications.
Original component images (reference)
Open an original image and zoom in to inspect component positions and details.
