Industrial Vacuum Drying Oven Set with Integrated Trap (S-IVAC400 SET / S-IVAC600 SET)
A vacuum drying oven set with an integrated trap to make efficient use of installation space. GHT discusses direct or indirect heating and vacuum-system configuration based on sample and solvent characteristics.
FEATURES & OPTIONS
Industrial Vacuum Drying Oven Set with Integrated Trap - Specifications and product guide
Model comparison · English specification PDF · Product configuration
Compare model specifications

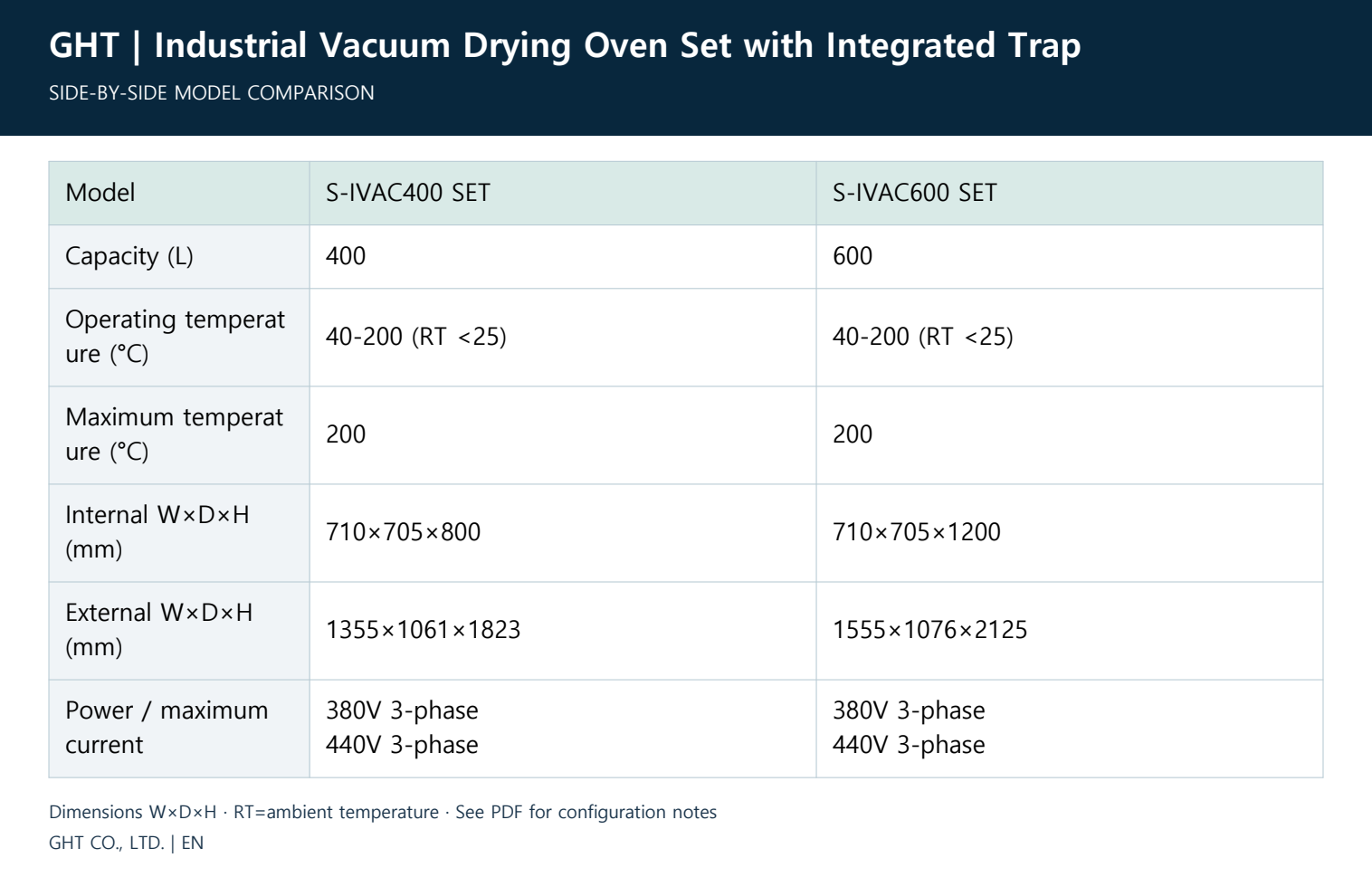

Compare capacity, temperature, dimensions and power side by side. Select the table to view it at full size.
Open the English specification PDF
Integrated-trap vacuum drying system
This set integrates a trap into an industrial vacuum oven to use installation space efficiently. Direct or indirect heating can be discussed for the sample and process. Trap capture conditions and pump specifications are selected against moisture and solvent load.
Control and main components
The illustrated configuration includes a TC6 PID controller with auto-tuning and set/actual temperature monitoring. Components include a vacuum gauge, valves, pump switch, emergency stop and trap temperature indicator. The chamber is SUS304 and the exterior is powder-coated steel, with earth-leakage and over-temperature protection.
Model dimensions and power
S-IVAC400 SET: internal W710×D705×H800mm; external W1355×D1061×H1823mm. S-IVAC600 SET: internal W710×D705×H1200mm; external W1555×D1076×H2125mm. Reference operation is 40–200°C, with 380V or 440V three-phase supply.
Options and order confirmation
Discuss a digital vacuum gauge, flowmeter and vacuum pump for your process. Confirm pump inclusion, trap temperature/capture capacity, pipework, power and delivery access at quotation. Share moisture/solvent type and load so GHT can recommend the required configuration.
Confirm the model and operating conditions
Temperature and capacity depend on the model and configuration. Maximum temperature and continuous operating temperature are distinct; final specifications are confirmed during quotation.
Discuss your requirements with GHT
Share sample dimensions, weight and quantity, target temperature and hold time, installation space and power supply. For vacuum or gas-use equipment, we also review pump, trap and gas-supply requirements. GHT will recommend a suitable configuration and discuss supply specifications.
Original component images (reference)
Open an original image and zoom in to inspect component positions and details.
SPECIFICATIONS
Text specifications by model
Use the comparison chart above to compare models. The detailed specifications are also provided below as text. RT means ambient temperature; dimensions are W×D×H.
| Capacity | 400 / 600 L | |
|---|---|---|
| Operating temperature | 40–200 °C (RT ≤25 °C) | |
| Internal W×D×H | 710×705×800 / 710×705×1200 mm | |
| Power supply | 380 V / 440 V, 3-phase | |
| Configuration | Integrated cold trap | |
| S-IVAC400 SET | Operating temperature: 40–200°C (RT <25°C) · Maximum temperature: 200°C | Operating temperature: 40–200°C (RT <25°C) · Maximum temperature: 200°C · Capacity: 400 L · Internal W×D×H: 710×705×800 mm · External W×D×H: 1355×1061×1823 mm · Power supply: 380V 3φ / 440V 3φ Dimensions in mm; RT = ambient temperature. Confirm the supply configuration and installation power with GHT. |
| S-IVAC600 SET | Operating temperature: 40–200°C (RT <25°C) · Maximum temperature: 200°C | Operating temperature: 40–200°C (RT <25°C) · Maximum temperature: 200°C · Capacity: 600 L · Internal W×D×H: 710×705×1200 mm · External W×D×H: 1555×1076×2125 mm · Power supply: 380V 3φ / 440V 3φ Dimensions in mm; RT = ambient temperature. Confirm the supply configuration and installation power with GHT. |
| Construction, control and components | Common configuration specifications | Common configuration specifications Acid-finished SUS304 interior; powder-coated steel exterior. Digital PID, contactless SSR control and timer up to 99h59min (min-sec selectable). Leakage breaker and overtemperature protection. Pump, trap and valve configuration is confirmed for the process. |
