Industrial Shelf-heated Vacuum Drying Oven (S-IVAC125-AP / S-IVAC400-AP / S-IVAC600-AP)
A large-capacity vacuum oven that transfers heat to samples through heated shelves. GHT helps select capacity, shelving and vacuum-system configuration to suit sample loading and throughput.
FEATURES & OPTIONS
Industrial Shelf-heated Vacuum Drying Oven - Specifications and product guide
Model comparison · English specification PDF · Product configuration

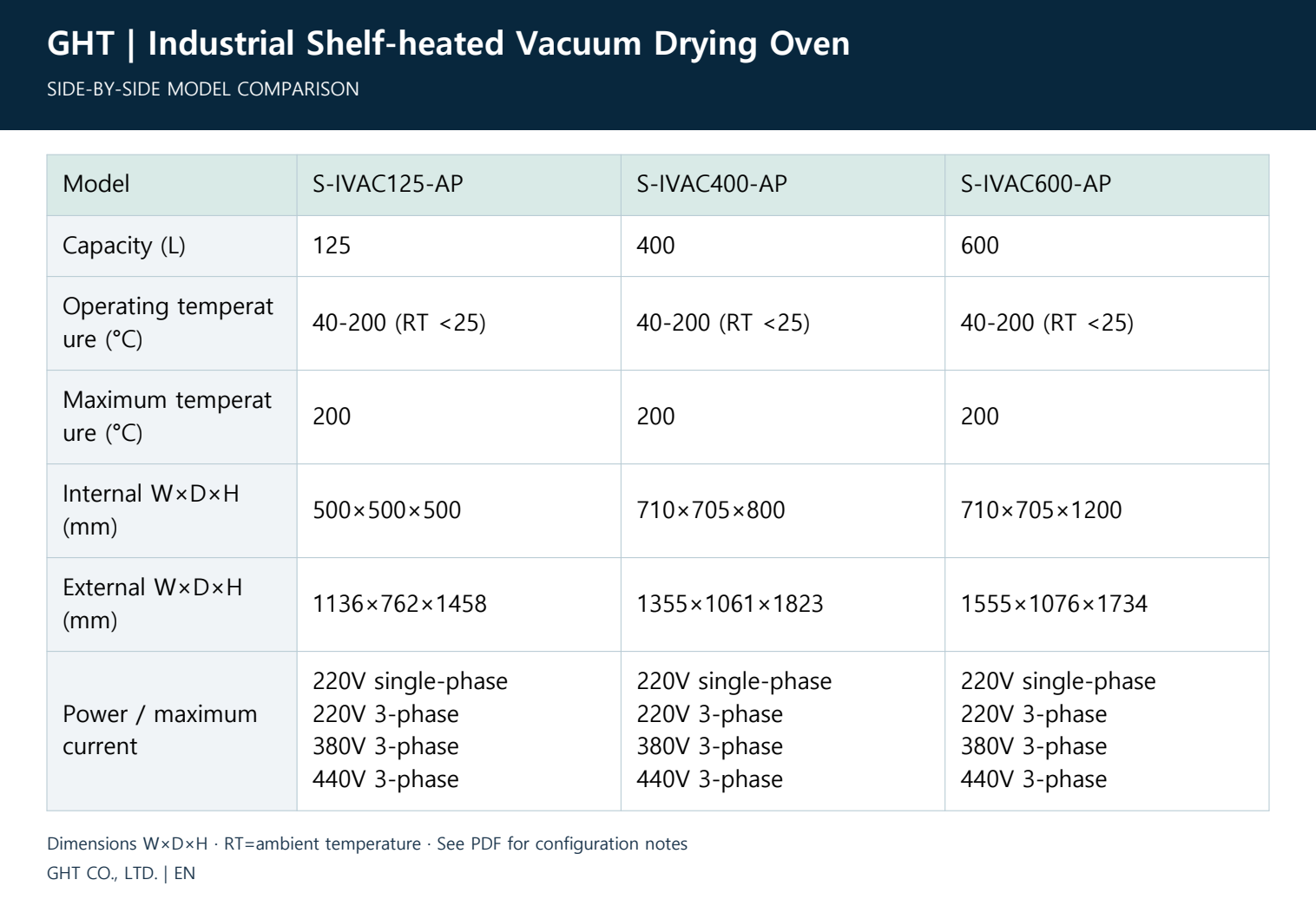

Compare model specifications
Compare capacity, temperature, dimensions and power side by side. Select the table to view it at full size.
Open the English specification PDF
Shelf-heated vacuum drying
Heaters below the shelves transfer heat directly to samples. Review shelf contact and loading for processes where convection is restricted under vacuum. Select 125L, 400L or 600L to suit samples and throughput.
Control, materials and safety
PID control and auto-tuning support set/actual temperature monitoring. The chamber is SUS304, the exterior is powder-coated steel and the shelves are fixed SUS 3T. Shelf quantity can be discussed. The configuration includes SSR heater control, earth-leakage protection and over-temperature protection.
External dimensions and power
S-IVAC125-AP: external W1136×D762×H1458mm. S-IVAC400-AP: W1355×D1061×H1823mm. S-IVAC600-AP: W1555×D1076×H1734mm. Confirm model-specific 220V single/three-phase or 380V/440V three-phase configurations against site requirements. The listed heater capacity is 500W–2kW per shelf.
Vacuum system and options
Discuss KVC2300 or KM700 digital vacuum gauges, a flowmeter, vacuum pump and industrial cold trap. Review the oven–cold trap–pump arrangement for moisture/solvent capture and pump protection. Gauge display range must be distinguished from achievable operating pressure.
Confirm the model and operating conditions
Temperature and capacity depend on the model and configuration. Maximum temperature and continuous operating temperature are distinct; final specifications are confirmed during quotation.
Discuss your requirements with GHT
Share sample dimensions, weight and quantity, target temperature and hold time, installation space and power supply. For vacuum or gas-use equipment, we also review pump, trap and gas-supply requirements. GHT will recommend a suitable configuration and discuss supply specifications.
Original component images (reference)
Open an original image and zoom in to inspect component positions and details.
SPECIFICATIONS
Text specifications by model
Use the comparison chart above to compare models. The detailed specifications are also provided below as text. RT means ambient temperature; dimensions are W×D×H.
| Capacity | 125 / 400 / 600 L | |
|---|---|---|
| Operating temperature | 40–200 °C (RT ≤25 °C) | |
| Maximum temperature | 200 °C | |
| Internal W×D×H | 500×500×500 / 710×705×800 / 710×705×1200 mm | |
| Heating method | Heated shelves | |
| S-IVAC125-AP | Operating temperature: 40–200°C (RT <25°C) · Maximum temperature: 200°C | Operating temperature: 40–200°C (RT <25°C) · Maximum temperature: 200°C · Capacity: 125 L · Internal W×D×H: 500×500×500 mm · External W×D×H: 1136×762×1458 mm · Power supply: 220V 1φ / 220V 3φ / 380V 3φ / 440V 3φ Dimensions in mm; RT = ambient temperature. Confirm the supply configuration and installation power with GHT. |
| S-IVAC400-AP | Operating temperature: 40–200°C (RT <25°C) · Maximum temperature: 200°C | Operating temperature: 40–200°C (RT <25°C) · Maximum temperature: 200°C · Capacity: 400 L · Internal W×D×H: 710×705×800 mm · External W×D×H: 1355×1061×1823 mm · Power supply: 220V 1φ / 220V 3φ / 380V 3φ / 440V 3φ Dimensions in mm; RT = ambient temperature. Confirm the supply configuration and installation power with GHT. |
| S-IVAC600-AP | Operating temperature: 40–200°C (RT <25°C) · Maximum temperature: 200°C | Operating temperature: 40–200°C (RT <25°C) · Maximum temperature: 200°C · Capacity: 600 L · Internal W×D×H: 710×705×1200 mm · External W×D×H: 1555×1076×1734 mm · Power supply: 220V 1φ / 220V 3φ / 380V 3φ / 440V 3φ Dimensions in mm; RT = ambient temperature. Confirm the supply configuration and installation power with GHT. |
| Construction, control and components | Common configuration specifications | Common configuration specifications Acid-finished SUS304 interior; powder-coated steel exterior. Digital PID, contactless SSR control and timer up to 99h59min (min-sec selectable). Leakage breaker and overtemperature protection. Pump, trap and valve configuration is confirmed for the process. Shelves: fixed SUS 3T; quantity can be discussed. Shelf heaters 500W–2kW, selected by configuration. |
