Muffle Furnace (S-MF01 / S-MF02 / S-MF03)
A muffle furnace for ash analysis, metal heat treatment and other high-temperature laboratory processes. GHT helps select chamber capacity and power requirements based on sample size and operating conditions.
FEATURES & OPTIONS
Muffle Furnace - Specifications and product guide
Model comparison · English specification PDF · Product configuration

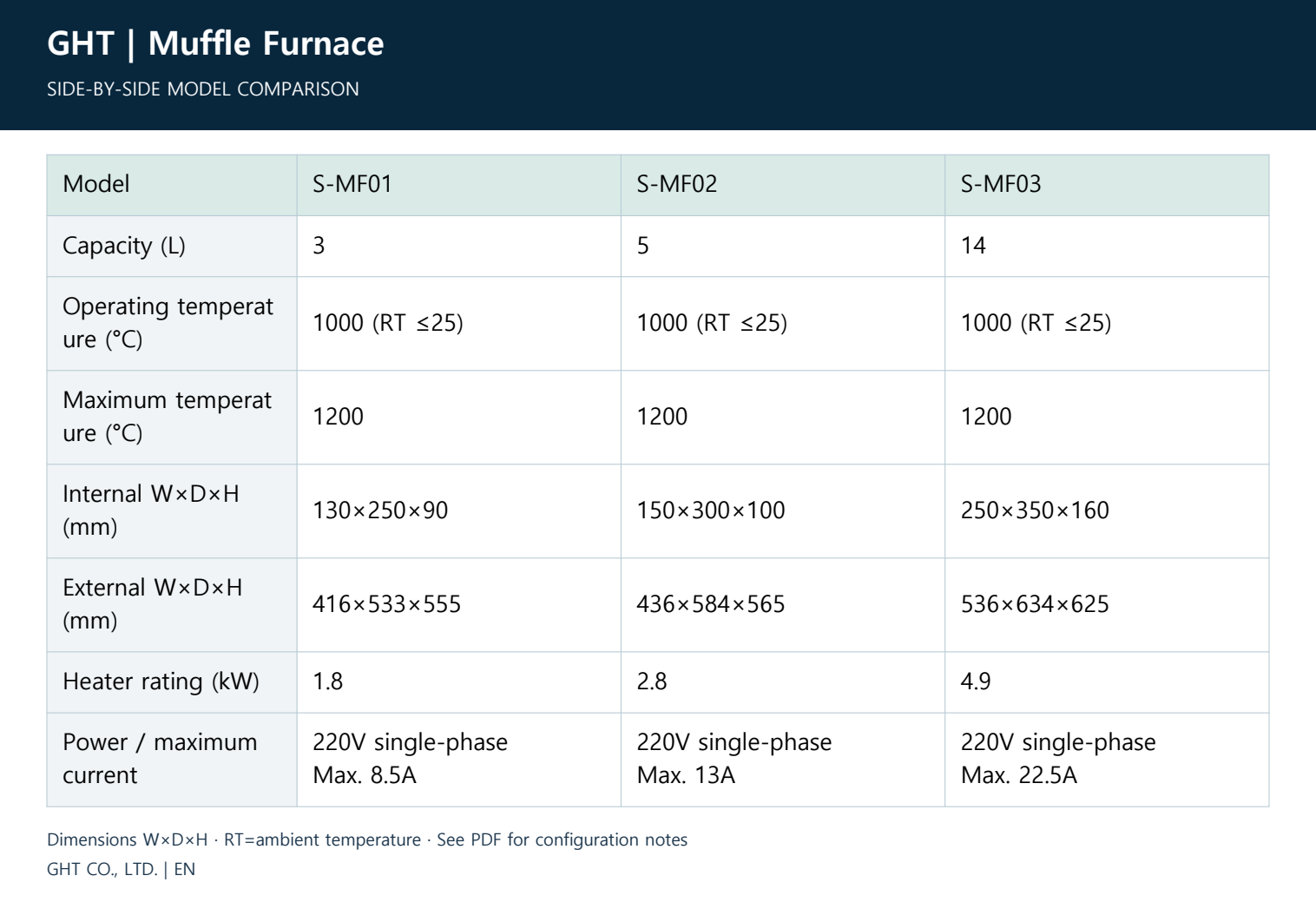

Compare model specifications
Compare capacity, temperature, dimensions and power side by side. Select the table to view it at full size.
Open the English specification PDF
Ash analysis and high-temperature treatment
This muffle furnace supports ash analysis, metal heat treatment and other high-temperature laboratory processes. Distinguish typical 1000°C operation from the 1200°C maximum. Select a 3L, 5L or 14L chamber to suit sample size.
Heating element, insulation and control
Moulded heating elements reduce damage from external contact. The internal insulation is ceramic fibre board and the exterior is powder-coated steel. PID control, auto-tuning and SSR heater control are used, with earth-leakage/overcurrent and over-temperature protection.
Electrical and external dimensions by model
S-MF01: 3L, 1.8kW heater, external W416×D533×H555mm. S-MF02: 5L, 2.8kW, W436×D584×H565mm. S-MF03: 14L, 4.9kW, W536×D634×H625mm. Reference supply: 220V, single-phase.
Controller and accessory selection
In addition to the standard TC2 controller, discuss a TP3 programme controller for stepwise temperature/time settings. Flowmeters and cabinet or open-frame support tables can also be reviewed. Tell GHT first if gas use or a special atmosphere is required.
Confirm the model and operating conditions
Temperature and capacity depend on the model and configuration. Maximum temperature and continuous operating temperature are distinct; final specifications are confirmed during quotation.
Discuss your requirements with GHT
Share sample dimensions, weight and quantity, target temperature and hold time, installation space and power supply. For vacuum or gas-use equipment, we also review pump, trap and gas-supply requirements. GHT will recommend a suitable configuration and discuss supply specifications.
Original component images (reference)
Open an original image and zoom in to inspect component positions and details.
SPECIFICATIONS
Text specifications by model
Use the comparison chart above to compare models. The detailed specifications are also provided below as text. RT means ambient temperature; dimensions are W×D×H.
| Capacity | 3 / 5 / 14 L | |
|---|---|---|
| Typical operating temperature | 1000 °C (RT ≤25 °C) | |
| Maximum temperature | 1200 °C | |
| Internal W×D×H | 130×250×90 / 150×300×100 / 250×350×160 mm | |
| Power supply | 220 V, single-phase | |
| S-MF01 | Operating temperature: 1000°C (RT ≤25°C) · Maximum temperature: 1200°C | Operating temperature: 1000°C (RT ≤25°C) · Maximum temperature: 1200°C · Capacity: 3 L · Internal W×D×H: 130×250×90 mm · External W×D×H: 416×533×555 mm · Heater: 1.8 kW · Power supply: 220V 1φ / Max 8.5A Dimensions in mm; RT = ambient temperature. Confirm the supply configuration and installation power with GHT. |
| S-MF02 | Operating temperature: 1000°C (RT ≤25°C) · Maximum temperature: 1200°C | Operating temperature: 1000°C (RT ≤25°C) · Maximum temperature: 1200°C · Capacity: 5 L · Internal W×D×H: 150×300×100 mm · External W×D×H: 436×584×565 mm · Heater: 2.8 kW · Power supply: 220V 1φ / Max 13A Dimensions in mm; RT = ambient temperature. Confirm the supply configuration and installation power with GHT. |
| S-MF03 | Operating temperature: 1000°C (RT ≤25°C) · Maximum temperature: 1200°C | Operating temperature: 1000°C (RT ≤25°C) · Maximum temperature: 1200°C · Capacity: 14 L · Internal W×D×H: 250×350×160 mm · External W×D×H: 536×634×625 mm · Heater: 4.9 kW · Power supply: 220V 1φ / Max 22.5A Dimensions in mm; RT = ambient temperature. Confirm the supply configuration and installation power with GHT. |
| Construction, control and components | Common configuration specifications | Common configuration specifications Ceramic-fibre-board insulation; powder-coated steel exterior. KANTHAL A-1 moulded heater. PID/SSR control, timer, leakage breaker and overtemperature protection. Digital PID controller. |
