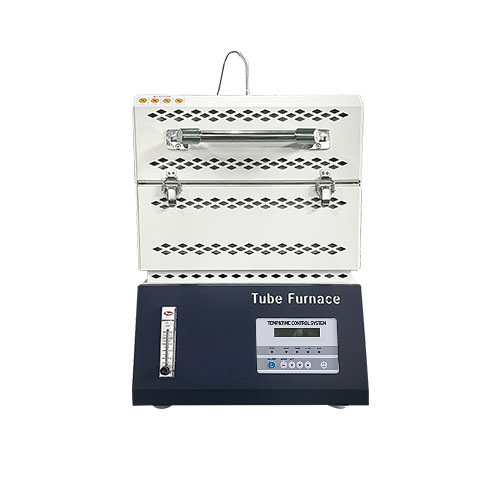

Tube Furnace (S-TMF50 / S-TMF80 / S-TMF100 / S-TMF120)
A split tube furnace for tube-based heat treatment and annealing processes. GHT discusses furnace selection and the equipment needed for atmosphere control based on tube diameter and heating conditions.
SPECIFICATIONS
Detailed model specifications
RT means ambient temperature. Dimensions are W×D×H. Select the additional product images above to view specifications and component drawings. Confirm the final supply specifications with GHT.
| Tube diameter | 50 / 80 / 100 / 120 mm | |
|---|---|---|
| Hot zone length | 300 mm | |
| Typical operating temperature | 1000 °C (RT ≤25 °C) | |
| Maximum temperature | 1200 °C | |
| Control | Programmable PID | |
| S-TMF50 | Operating temperature: 1000°C (RT ≤25°C) · Maximum temperature: 1200°C | Operating temperature: 1000°C (RT ≤25°C) · Maximum temperature: 1200°C · Heated length: 300 mm · External W×D×H: 420×400×600 mm · Heater: 3 kW · Power supply: 220V 1φ / 380V 3φ · Tube diameter: 50 mm Dimensions in mm; RT = ambient temperature. Confirm the supply configuration and installation power with GHT. |
| S-TMF80 | Operating temperature: 1000°C (RT ≤25°C) · Maximum temperature: 1200°C | Operating temperature: 1000°C (RT ≤25°C) · Maximum temperature: 1200°C · Heated length: 300 mm · External W×D×H: 500×400×570 mm · Heater: 3 kW · Power supply: 220V 1φ / 380V 3φ · Tube diameter: 80 mm Dimensions in mm; RT = ambient temperature. Confirm the supply configuration and installation power with GHT. |
| S-TMF100 | Operating temperature: 1000°C (RT ≤25°C) · Maximum temperature: 1200°C | Operating temperature: 1000°C (RT ≤25°C) · Maximum temperature: 1200°C · Heated length: 300 mm · External W×D×H: 550×430×600 mm · Heater: 3 kW · Power supply: 220V 1φ / 380V 3φ · Tube diameter: 100 mm Dimensions in mm; RT = ambient temperature. Confirm the supply configuration and installation power with GHT. |
| S-TMF120 | Operating temperature: 1000°C (RT ≤25°C) · Maximum temperature: 1200°C | Operating temperature: 1000°C (RT ≤25°C) · Maximum temperature: 1200°C · Heated length: 300 mm · External W×D×H: 550×460×630 mm · Heater: 3 kW · Power supply: 220V 1φ / 380V 3φ · Tube diameter: 120 mm Dimensions in mm; RT = ambient temperature. Confirm the supply configuration and installation power with GHT. |
| Construction, control and components | Common configuration specifications | Common configuration specifications Ceramic-fibre-board insulation; powder-coated steel exterior. KANTHAL A-1 moulded heater. PID/SSR control, timer, leakage breaker and overtemperature protection. Programmable PID controller. |
FEATURES & OPTIONS
Tube Furnace - Specifications and product guide
Model comparison · English specification PDF · Product configuration

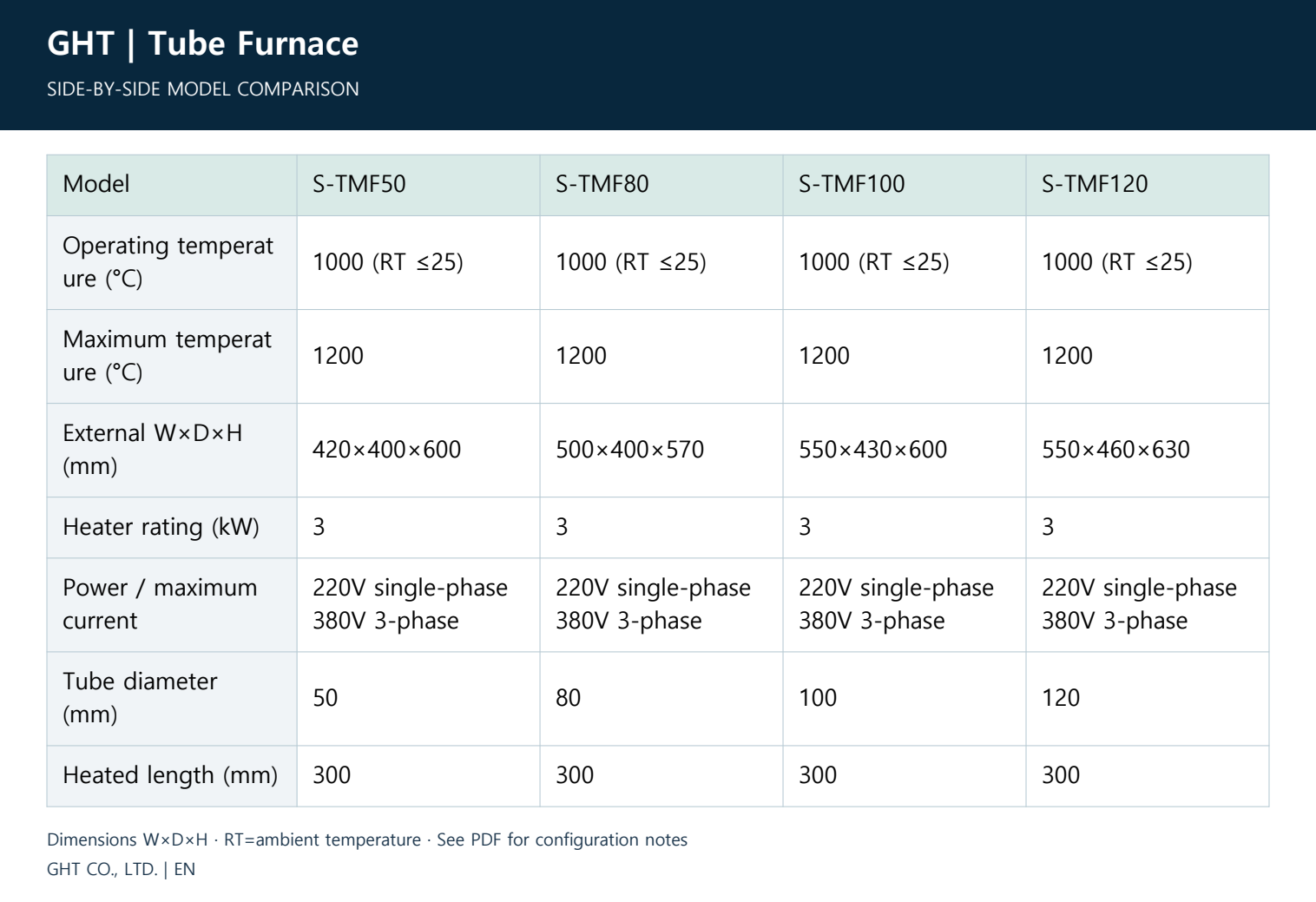

Compare model specifications
Compare capacity, temperature, dimensions and power side by side. Select the table to view it at full size.
Open the English specification PDF
Tube heat treatment and atmosphere configuration
This split tube furnace supports tube-based heat treatment and annealing. The opening design facilitates tube installation and replacement. Discuss gas supply/exhaust and tube-end connections against your process. Specified oxygen concentration or vacuum level requires separate review of connected equipment and operating conditions.
Programme control and safety
A programme PID controller supports stepwise temperature/time settings and auto-tuning. Internal insulation is ceramic fibre board and the exterior is powder-coated steel. The configuration includes moulded heating elements, SSR control, earth-leakage/overcurrent and over-temperature protection.
Tube diameters and external dimensions
Hot-zone length is 300mm. S-TMF50: 50mm tube, external W420×D400×H600mm. S-TMF80: 80mm, W500×D400×H570mm. S-TMF100: 100mm, W550×D430×H600mm. S-TMF120: 120mm, W550×D460×H630mm. Heater capacity is 3kW; confirm 220V single-phase or 380V three-phase supply configuration.
Operating temperature and accessories
Typical operation is 1000°C; maximum temperature is 1200°C. Discuss quartz process tubes, tube-end flanges, a flowmeter and support table. The quartz tube holds the sample in the process, while flanges are accessories for tube-end and gas connection configuration.
Confirm the model and operating conditions
Temperature and capacity depend on the model and configuration. Maximum temperature and continuous operating temperature are distinct; final specifications are confirmed during quotation.
Discuss your requirements with GHT
Share sample dimensions, weight and quantity, target temperature and hold time, installation space and power supply. For vacuum or gas-use equipment, we also review pump, trap and gas-supply requirements. GHT will recommend a suitable configuration and discuss supply specifications.
Original component images (reference)

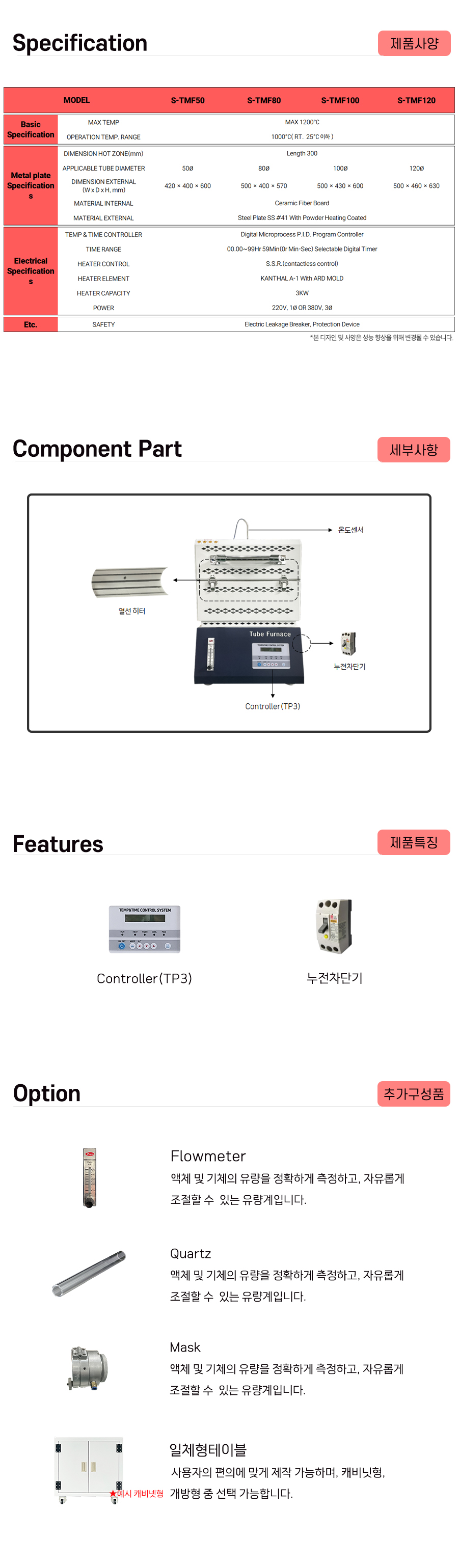

Open an original image and zoom in to inspect component positions and details.
